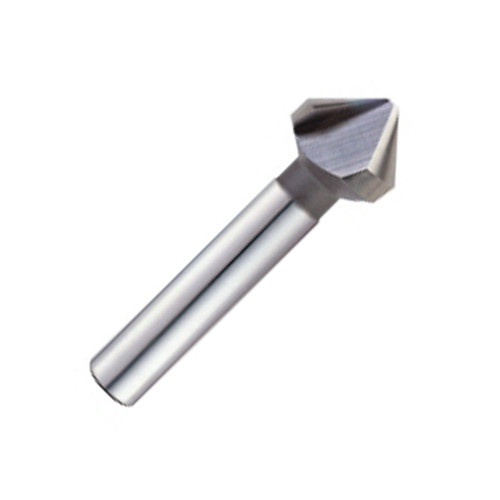

COUNTERSINK TICN 16.5
47 Deg 3 Flute for smooth cutting (90 Degrees) Countersink for all Materials HSS with TICN Coating
| Cutting Diameter (DC) | 16.5 mm | Cutting Edge Material | HSS |
| Overall Length (OAL) | 60 mm | Length Chip Flute (LCF) | - |
| Shank Length (LS) | - | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Cutting Diameter Maximum (DCX) | 16.5 mm |
| Flute Count (NOF) | 3 | Cutting Diameter Minimum (DCN) | 3.2 mm |
| Point Angle (SIG) | 90 deg | Unit | M |
| Coating | TICN |
Product Features
| Family Description | 47 Deg 3 Flute for smooth cutting (90 Degrees) Countersink for all Materials HSS with TICN Coating | Remarks | C1339165 |
