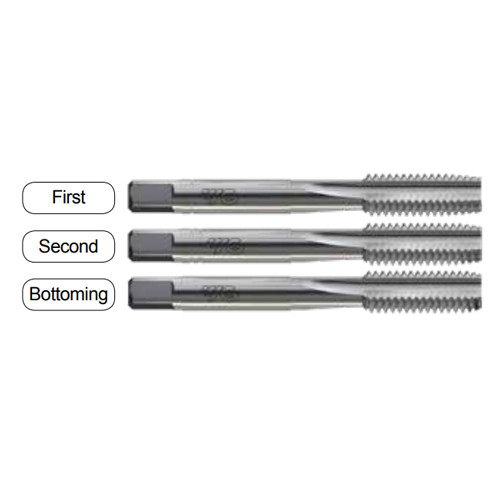

TAP M8 HAND TAP SET
METRIC COARSE - SET of 3 HAND TAPS (First / Intermediate / Bottoming)
| Thread Diameter Size (TDZ) | M8 | Coolant Supply Property (CSP) | N/A |
| Thread Standard | M | Cutting Edge Material | HSS |
| Threads per Inch (TPI) | N/A | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | |
| Pitch in mm | 1.25 mm | Applicable Material | | Steel | Cast Iron | Non Ferrous | |
| Thread Tolerance Class (TCTR) | ISO 2/6H | Contains | 3 pcs |
| Tool Type | Hand Taps | Thread Pitch (TP) | 1.25 mm |
| Flute Length | 20 mm | Thread Size | N/A |
| Cutting Direction (HAND) | R/H | Body Material | HSS |
| Overall Length (OAL) | 63 mm | Unit | M |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
Product Features
| Family Description | METRIC COARSE - SET of 3 HAND TAPS (First / Intermediate / Bottoming) | Remarks | T7109369 |
