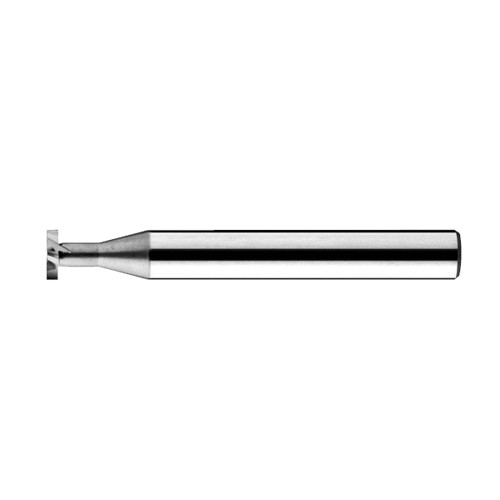

ETS100 4TES 70X3.0X9
Endmill T-Slot cutters Solid Shank for up to HRc 50 JCRO Uncoated
| Cutting Diameter (DC) | 10 mm | Protruding Length (LPR) | 9 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Cutting Edge Material | Carbide |
| Overall Length (OAL) | 70 mm | Coating | Uncoated |
| Number of Teeth | 4 | Shank Type | Cylindrical |
| Cutting Width (CW) | 3 mm | Flute Type | N/A |
| Angle | 15 degrees | Tool Type | T-Slot Cutter |
| Applicable Material | | Pre Hardened Steel | Tool Steel | Cast Iron | Tool Steel | | Measurement Type | Metric |
| Neck Diameter (DN) | 5 mm | Unit | M |
Product Features
| Family Description | Endmill T-Slot cutters Solid Shank for up to HRc 50 JCRO Uncoated | FamilyName | 4TES |
| Remarks | 4TES100030090 | BrandName | JJ Tools |
Shipping Info
Name
Keyseat / Disc w/Shank Slotting Cutters
FamilyName
4TES
BrandName
JJ Tools
