| Applicable Material | |Pre Hardened Steel |Hardened Steel | | Body Half Taper Angle (BHTA) | 10 degrees |
| Cutting Diameter (DC) | 1 mm | Point Angle (SIG) | N/A |
| Depth of Cut Maximum (APMX) | 6 mm | Coating | Coated |
| Flute Count (NOF) | 2 | Cutting Edge Material | Carbide |
| Overall Length (OAL) | 45 mm | End Shape | N/A |
| Flute Helix Angle (FHA) | 30 Degrees | Tool Type | Tapered Endmill |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Unit | M |
Product Features
| Family Description | ECO 2 Flute Tapered Ball Endmills | FamilyName | 2CTB |
| Remarks | 2CTB010100060 | BrandName | JJ Tools |
Shipping Info
Name

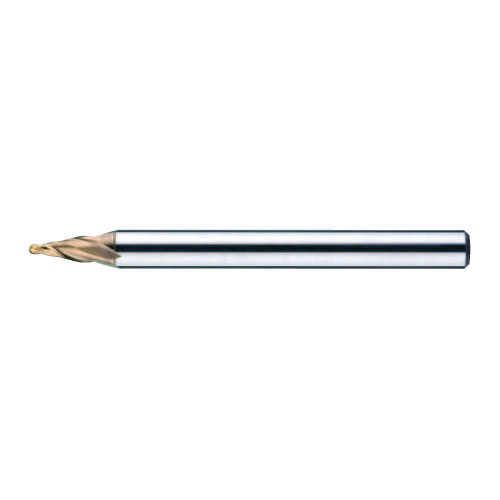

Tapered End Mills
FamilyName
2CTB
BrandName
JJ Tools
