| Cutting Diameter (DC) | 12 mm | End Shape | N/A |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Usable Length (LU) | - |
| Depth of Cut Maximum (APMX) | 26 mm | Applicable Material | | Stainless Steel | Cast Iron | Steel | |
| Overall Length (OAL) | 83 mm | Tool Type | Endmill |
| Cutting Edge Material | Carbide | Decimal Equivalent | N/A |
| Coating | AlTiN | Corner Radius (RE) / Chamfer Width (CHW) | - |
| Flute Count (NOF) | 3 | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Unit | M |
Product Features
| Family Description | High Performance 3 Flute coated | FamilyName | 243 |
| Remarks | 243.120.10 | BrandName | Inovatools |
Shipping Info
Name

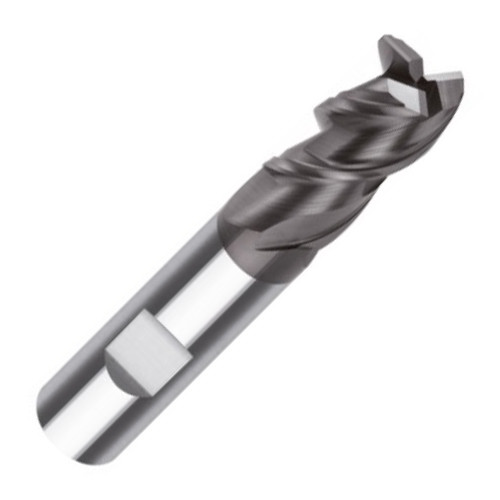

Square & Corner Radius End Mills
FamilyName
243
BrandName
Inovatools
