ECF D-0.20/15-1C06

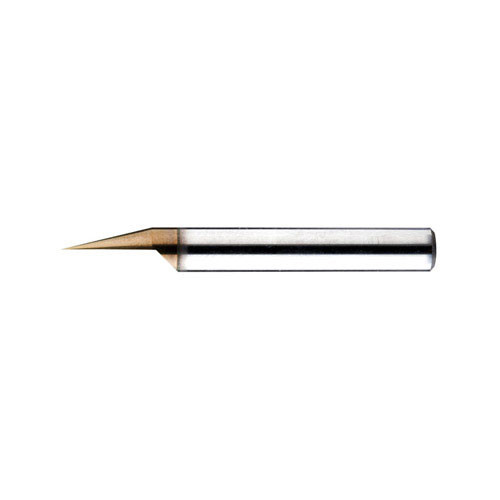

1 Flute Endmills Carbide for CNC engraving, chamfering and centering with straight flutes
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Point Angle (SIG) | 30 Degrees |
| Application | | Countersinking | Slanted Shoulder & Chamfer | | Number of Teeth | 1 |
| Cutting Diameter (DC) | 0.20 mm | Cutting Edge Material | Carbide |
| Usable Length (LU) | 5 mm | Coating | TISIN |
| Flute Count (NOF) | 1 | Shank Type | Round |
| Depth of Cut Maximum (APMX) | - | Tool Type | Solid chamfering endmills |
| Overall Length (OAL) | 50 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Unit | M |
Product Features
| Family Description | 1 Flute Endmills Carbide for CNC engraving, chamfering and centering with straight flutes | FamilyName | 1STE |
| Remarks | 1STE002300S06 | BrandName | JJ Tools |
Shipping Info
Name
Chamfer Mills
FamilyName
1STE
BrandName
JJ Tools
