| Drill Bit Size / Cutting Diameter (DC) | 8 mm | Application | | Centre Drilling | |
| Point Angle (SIG) | 60 Degrees | Applicable Material | | Steel | Tool Steel | Cast Iron | |
| Protruding Length (LPR) | N/A | Flute Length | 3.9 mm |
| Overall Length (OAL) | 50 mm | Drill Min. Diameter | 3.15 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | - | Point Shape | FORM A (60 Deg) |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Measurement Type | Metric |
| Coating | Bright | Tool Type | - |
| Cutting Edge Material | HSS | Unit | M |
Product Features

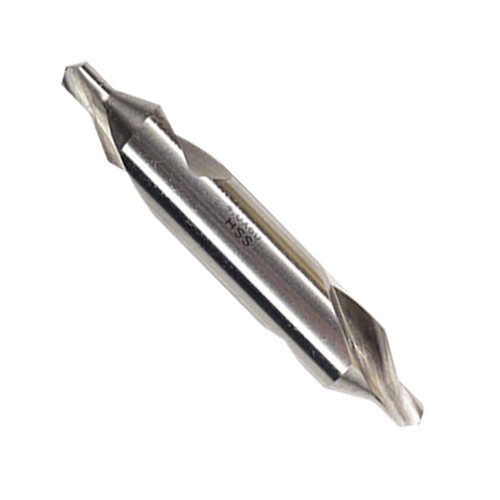

| Family Description | HSS Centre Drills - FORM A (60 Deg) | Remarks | D1303931 |
