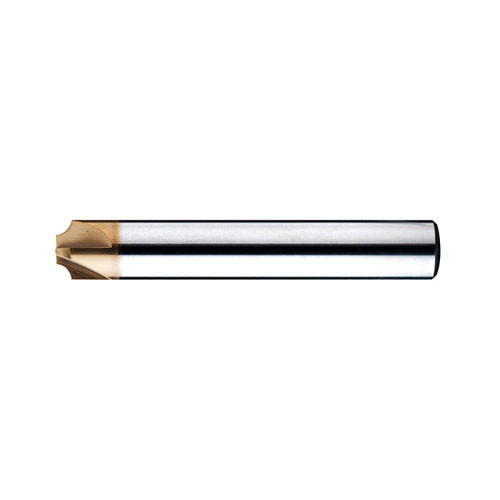

REFLEX 4CRC R2.0 D3.9 C8
ECO Corner Rounding 4 Flute Straight PVD TISIN Coated
| Cutting Diameter (DC) | 3.9 mm | Applicable Material | | Hardened Steel | Pre Hardened | Tool Steel | Cast Iron | |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Application | | Corner Rounding | |
| Depth of Cut Maximum (APMX) | - | Corner Radius (RE) | 2mm |
| Overall Length (OAL) | 60 mm | Grade | ULTRA FINE |
| Cutting Edge Material | Carbide | Number of Teeth | 4 |
| Coating | TISIN | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Unit | M |
| Shank Type | Cylindrical |
Product Features
| Family Description | ECO Corner Rounding 4 Flute Straight PVD TISIN Coated | FamilyName | 4CRC |
| Remarks | 4CRC039020S08 | BrandName | JJ Tools |
Shipping Info
Name
Concave Radius End Mills
FamilyName
4CRC
BrandName
JJ Tools
