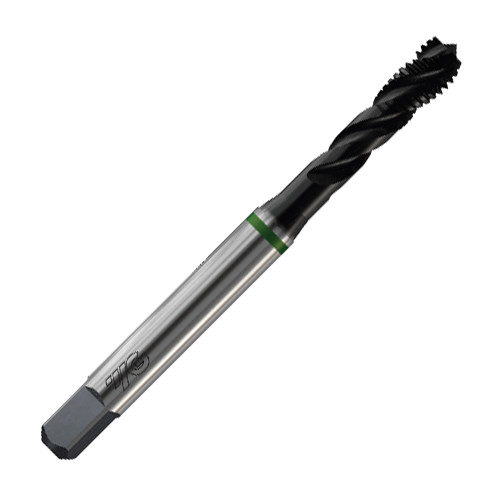

TAP 10-32 UNF SPFL HSLK
BLACK TAP Spiral Flute UNC HARDSLICK Coated Gen Purpose
| Thread Diameter Size (TDZ) | #10 | Applicable Material | | Steel | Stainless Steel | HSRA | Ti Alloys | |
| Thread Pitch (TP) | - | Cutting Edge Material | HSS |
| Threads per Inch (TPI) | 32 | Thread Tolerance Class (TCTR) | 2B |
| Thread Standard | UNF | Standard | DIN 374 |
| Overall Length (OAL) | 70 mm | Chamfer | - |
| Thread Cutting Part Length (THL) | 10 mm | Coating | Hardslick |
| Usable Length (LU) | 25 mm | Tapping Prehole Diameter (Pre-hole) | 4.1 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | ToolTypeName | Tap |
| Flute Count (NOF) | 3 | Unit | M |
| Flute Helix Angle (FHA) | 40 Degrees |
Product Features
| Family Description | BLACK TAP Spiral Flute UNC HARDSLICK Coated Gen Purpose | Remarks | TCH24342 |
