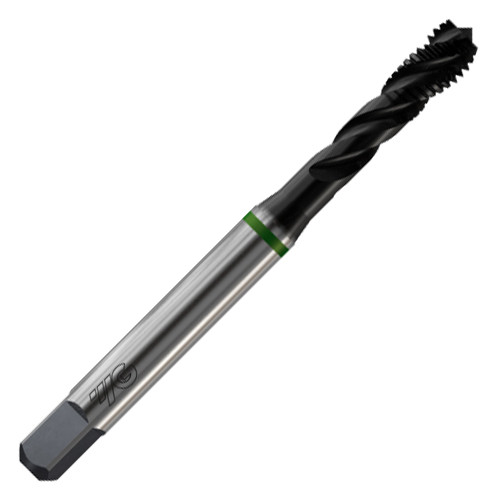

TAP M16 TCH14 SPFL HSLK
BLACK TAP Spiral Flute Metric HARDSLICK coated to reduce fiction General Purpose.
| Thread Diameter Size (TDZ) | 16 mm | Applicable Material | | Steel | Stainless Steel | HSRA | Ti Alloys | |
| Thread Pitch (TP) | 2 mm | Cutting Edge Material | HSS |
| Threads per Inch (TPI) | - | Thread Tolerance Class (TCTR) | 6H |
| Thread Standard | M | Standard | DIN 376 |
| Overall Length (OAL) | 110 mm | Chamfer | - |
| Thread Cutting Part Length (THL) | 20 mm | Coating | Hardslick |
| Usable Length (LU) | 44 mm | Square Size | 9 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Tapping Prehole Diameter (Pre-hole) | 14 mm |
| Flute Count (NOF) | 3 | ToolTypeName | Tap |
| Flute Helix Angle (FHA) | 40 Degrees | Unit | M |
Product Features
| Family Description | BLACK TAP Spiral Flute Metric HARDSLICK coated to reduce fiction General Purpose. | Remarks | TCH14606 |
