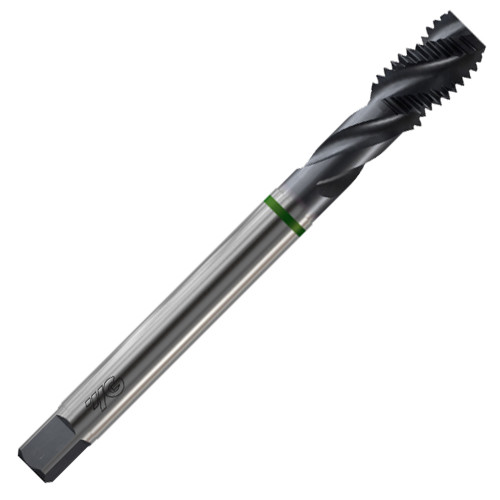

TAP 3/8-19 BSP SPFL
TAP Spiral Flute BSP Steam Tempered Gen Purpose
| Thread Diameter Size (TDZ) | G3/8″ | Applicable Material | | Steel | Stainless Steel | |
| Thread Pitch (TP) | - | Cutting Edge Material | HSS |
| Threads per Inch (TPI) | 19 | Thread Tolerance Class (TCTR) | - |
| Thread Standard | BSP | Standard | DIN 5159 |
| Overall Length (OAL) | 100 mm | Chamfer | - |
| Thread Cutting Part Length (THL) | 22 mm | Coating | Vap |
| Usable Length (LU) | 40 mm | Square Size | 9 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Tapping Prehole Diameter (Pre-hole) | 15.25 mm |
| Flute Count (NOF) | 3 | ToolTypeName | Tap |
| Flute Helix Angle (FHA) | 40 Degrees | Unit | M |
Product Features
| Family Description | TAP Spiral Flute BSP Steam Tempered Gen Purpose | Remarks | TB514480 |
