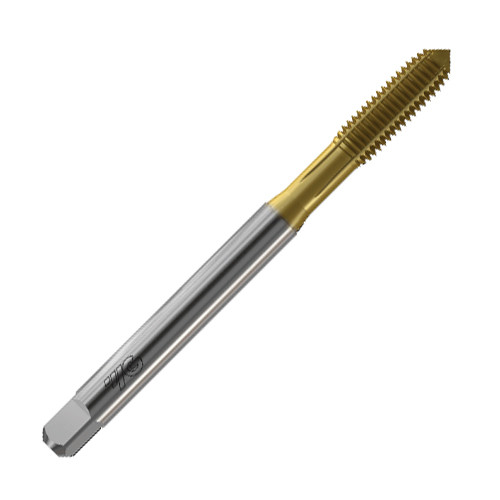

TAP 5/8-18 UNF ROLL TIN
Tap Roll UNF with Oil Groove for Lubrication TIN Coated
| Tool Type | Tap | Tapping Prehole Diameter (Pre-hole) | 14.5 mm |
| Thread Diameter Size (TDZ) | 5/8″ | Thread Standard | UNF |
| Thread Pitch (TP) | - | Applicable Material | | Steel | Alloy Steel | Aluminium| |
| Overall Length (OAL) | 100 mm | Coating | TiN |
| Thread Cutting Part Length (THL) | 23 mm | Threads per Inch (TPI) | 18 |
| Usable Length (LU) | 40 mm | Cutting Edge Material | HSS |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Grade | HSS-E |
| Thread Tolerance Class (TCTR) | 2BX | Thread Size | - |
| Tap Standard | DIN 376 | Unit | M |
Product Features
| Family Description | Tap Roll UNF with Oil Groove for Lubrication TIN Coated | Remarks | TDQ04662 |
