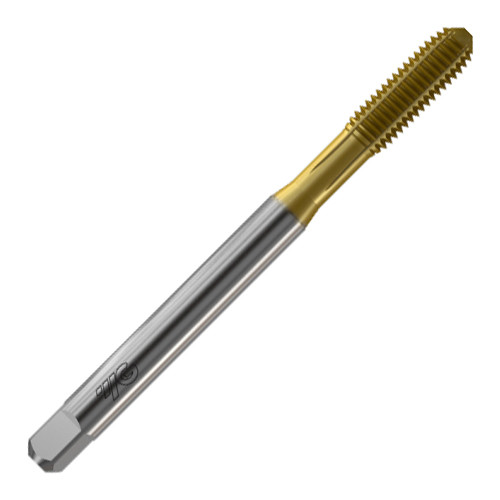

TAP 7/16-14 UNC ROLL TIN
Tap Roll oil groove for lubrication UNC TIN coated for materials with at least 8-10% elongation
| Tool Type | Tap | Thread Standard | UNC |
| Thread Diameter Size (TDZ) | 7/16″ | Applicable Material | | Steel | Alloy Steel | Aluminium| |
| Thread Pitch (TP) | - | Coating | TiN |
| Overall Length (OAL) | 100 mm | Threads per Inch (TPI) | 14 |
| Thread Cutting Part Length (THL) | 22 mm | Square Size | 6.2 mm |
| Usable Length (LU) | 40 mm | Cutting Edge Material | HSS |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Grade | HSS-E |
| Thread Tolerance Class (TCTR) | 2BX | Thread Size | - |
| Tap Standard | DIN 376 | Unit | M |
| Tapping Prehole Diameter (Pre-hole) | 10.2 mm |
Product Features
| Family Description | Tap Roll oil groove for lubrication UNC TIN coated for materials with at least 8-10% elongation | Remarks | TD704522 |
