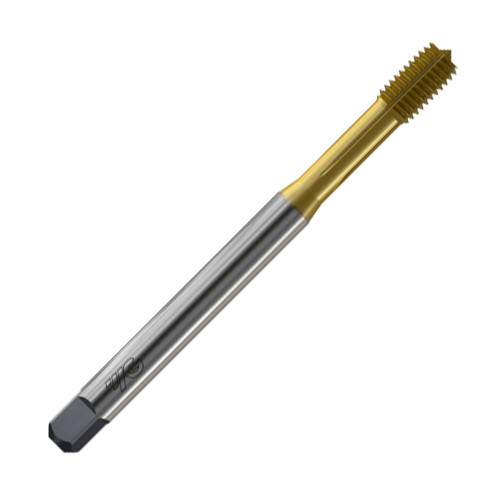

TAP M5 ROLL PM TIN
Tap Roll for synchronised tapping TIN coated Metric Coarse for soft materials with at least 8-10% elongation

Tool Type | Tap | Tapping Prehole Diameter (Pre-hole) | 4.65 mm |
Thread Diameter Size (TDZ) | 5 mm | Thread Standard | M |
Thread Pitch (TP) | 0.8 mm | Applicable Material | | Steel | Alloy Steel | Aluminium| |
Overall Length (OAL) | 70 mm | Coating | TiN |
Thread Cutting Part Length (THL) | 8 mm | Square Size | 4.9 mm |
Usable Length (LU) | 25 mm | Cutting Edge Material | HSS |
Connection Diameter Machine Side (DCONMS) | 6 mm | Grade | HSS-PM |
Thread Tolerance Class (TCTR) | 6HX | Thread Size | - |
Tap Standard | DIN 371 | Unit | M |
Product Features
Family Description | Tap Roll for synchronised tapping TIN coated Metric Coarse for soft materials with at least 8-10% elongation | Remarks | TTS37286 |
