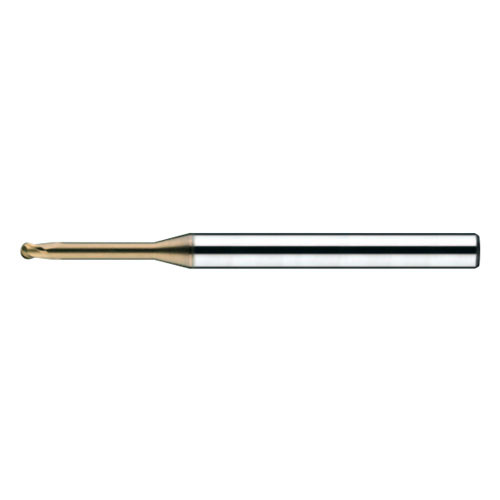

EB005 2NEER 55X0.5/2
ECO range with good wear resistance and high edge tolerance to produce high surface finish. Suitable for HSM with ultra-fine carbide grade.
| Cutting Diameter (DC) | 0.5 mm | Flute Helix Angle (FHA) | 30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Usable Length (LU) | 2 mm |
| Depth of Cut Maximum (APMX) | 0.5 mm | Applicable Material | | Steel | Hard Materials | |
| Overall Length (OAL) | 45 mm | Tool Type | Solid Ballnose |
| Cutting Edge Material | Carbide | Decimal Equivalent | - |
| Coating | TISIN | Unit | M |
| Flute Count (NOF) | 2 |
Product Features
| Family Description | ECO range with good wear resistance and high edge tolerance to produce high surface finish. Suitable for HSM with ultra-fine carbide grade. | FamilyName | 2HRB |
| Remarks | 2HRB005020S04 | BrandName | JJ Tools |
Shipping Info
Name
Ballnose End Mills
FamilyName
2HRB
BrandName
JJ Tools
