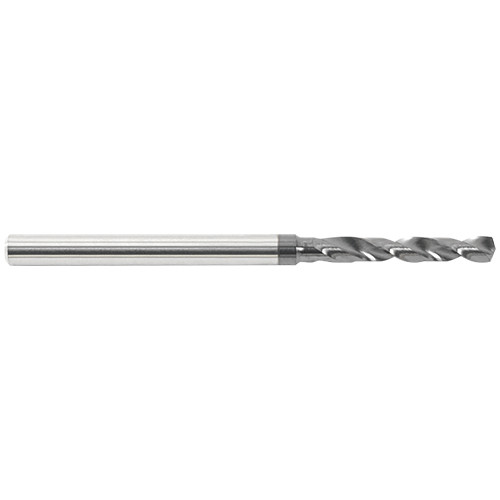

SCD 0255-013-030 1550H 3D
3xD Solid Carbide Drill for Stainless and tool Steel/Alloys > 40Rc AlTiN Coated
| Drill Bit Size / Cutting Diameter (DC) - Inch | - | Functional Length (LF) | - |
| Decimal Equivalent | - | Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.55 mm | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | - | Tool Type | Solid Carbide Drills |
| Length Group | 3D | Usable Length (LU) | 13 mm |
| Coating | AlTiN | Length Chip Flute (LCF) | 13 mm |
| Applicable Material | | High Nickel | Cobalt based | Stainless Steel | Tool Steel | | Overall Length (OAL) | 50 mm |
| Application | | Drilling | | Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Cutting Direction (HAND) | Right Hand |
| Coolant Supply Property (CSP) | External | Unit | M |
| Point Angle (SIG) | 135 Degrees |
Product Features
| Family Description | 3xD Solid Carbide Drill for Stainless and tool Steel/Alloys > 40Rc AlTiN Coated | Remarks | 264 |
