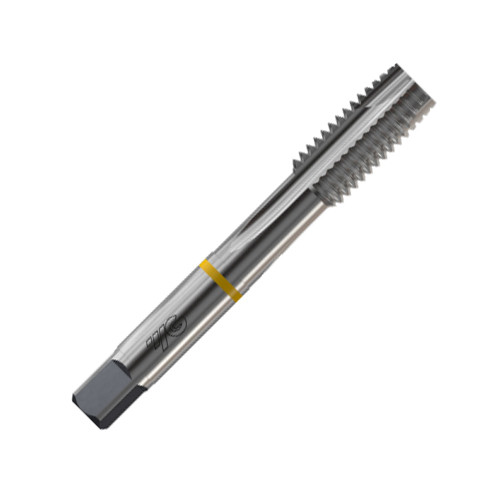

TAP 3/4-14 BSP STFL
TAP Spiral Point BSP Fine Straight flute Steam Tempered Green Band
| Thread Standard | BSP | Flute Count (NOF) | 4 |
| Thread Size | - | Cutting Edge Material | - |
| Thread Diameter Size (TDZ) | G3/4″ | Standard | DIN 5156 |
| Threads per Inch (TPI) | 14 | Tool Type | Tap |
| Thread Pitch (TP) | - | Applicable Material | | Steel | Stainless Steel | |
| Thread Tolerance Class (TCTR) | - | Connection Diameter Machine Side (DCONMS) | 20 mm |
| Usable Length (LU) | 54 mm | Thread Cutting Part Length (THL) | 28 mm |
| Overall Length (OAL) | 140 mm | Tapping Prehole Diameter (Pre-hole) | 24.5 mm |
| Chamfer | - | Square Size | 16 mm |
| Coating | Bright | Unit | I |
Product Features
| Family Description | TAP Spiral Point BSP Fine Straight flute Steam Tempered Green Band | Remarks | TC727700 |
