| Thread Standard | MF | Flute Count (NOF) | 3 |
| Thread Size | - | Cutting Edge Material | - |
| Thread Diameter Size (TDZ) | 16 mm | Standard | DIN 374 |
| Threads per Inch (TPI) | - | Tool Type | Tap |
| Thread Pitch (TP) | 1.5 mm | Applicable Material | | Steel | Stainless Steel | |
| Thread Tolerance Class (TCTR) | 6HX | Connection Diameter Machine Side (DCONMS) | 12 mm |
| Usable Length (LU) | 40 mm | Thread Cutting Part Length (THL) | 22 mm |
| Overall Length (OAL) | 100 mm | Tapping Prehole Diameter (Pre-hole) | 14.5 mm |
| Chamfer | - | Square Size | 9 mm |
| Coating | Vap | Unit | M |
Product Features

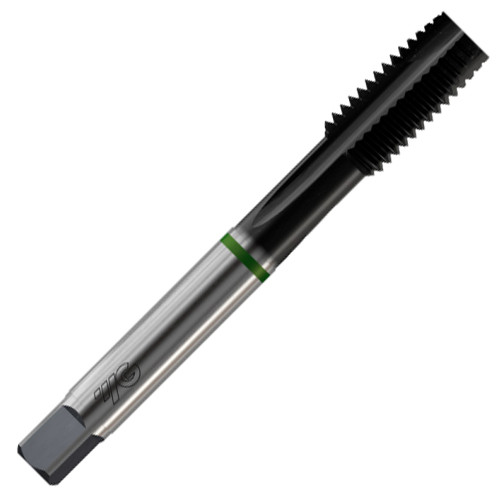

| Family Description | TAP Spiral point metric Fine straight flute Steam Tempered Green Band | Remarks | TB123616 |
