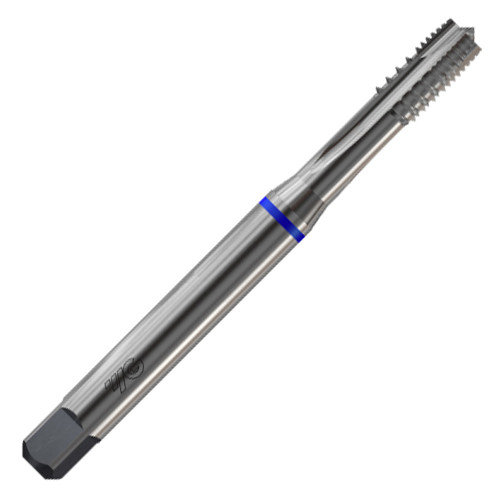

TAP M20 STFL ALI
TAP Spiral Point Metric Straight flute interupted Uncoated Aluminium Blue Band
| Thread Standard | M | Flute Count (NOF) | 3 |
| Thread Size | - | Cutting Edge Material | - |
| Thread Diameter Size (TDZ) | 20 mm | Standard | DIN 376 |
| Threads per Inch (TPI) | - | Tool Type | Tap |
| Thread Pitch (TP) | 2.5 mm | Applicable Material | | Non Ferrous Metals | |
| Thread Tolerance Class (TCTR) | 6H | Connection Diameter Machine Side (DCONMS) | 16 mm |
| Usable Length (LU) | 54 mm | Thread Cutting Part Length (THL) | 32 mm |
| Overall Length (OAL) | 140 mm | Tapping Prehole Diameter (Pre-hole) | 17.5 mm |
| Chamfer | - | Square Size | 12 mm |
| Coating | Bright | Unit | M |
Product Features
| Family Description | TAP Spiral Point Metric Straight flute interupted Uncoated Aluminium Blue Band | Remarks | TC622706 |
