| Thread Standard | NPT | Flute Count (NOF) | 3 |
| Thread Size | - | Cutting Edge Material | - |
| Thread Diameter Size (TDZ) | 1/16″ | Standard | JIS B-4430 |
| Threads per Inch (TPI) | 27 | Tool Type | Tap |
| Thread Pitch (TP) | - | Applicable Material | | Steel | Cast Iron |Aluminum / Non-Ferrous Materials | |
| Thread Tolerance Class (TCTR) | - | Connection Diameter Machine Side (DCONMS) | 8 mm |
| Usable Length (LU) | 17 mm | Thread Cutting Part Length (THL) | 17 mm |
| Overall Length (OAL) | 54 mm | Tapping Prehole Diameter (Pre-hole) | 6.15 mm |
| Chamfer | - | Square Size | 6 mm |
| Coating | Bright | Unit | I |
Product Features

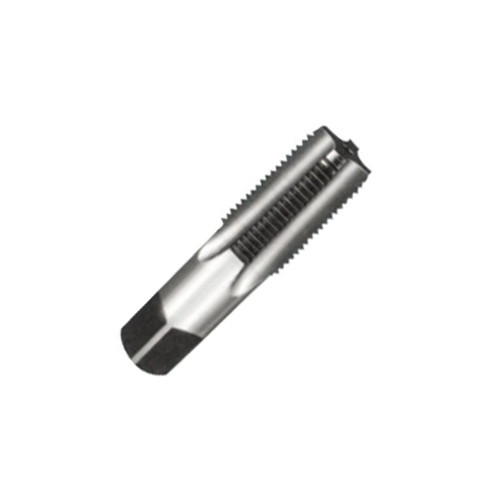

| Family Description | TAP NPT Straight flute Bright HSS-E | Remarks | T2527020 |
