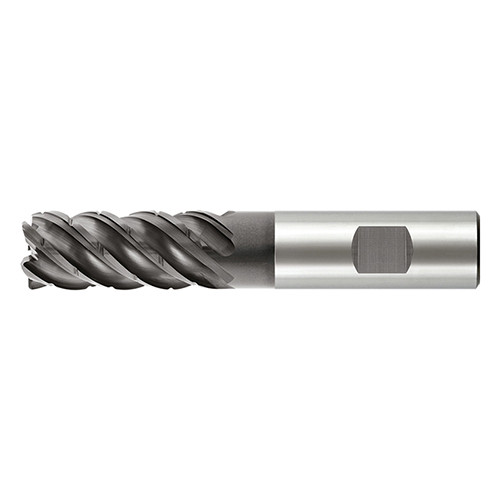

79710CS50801KMXW
Interrupted Cut Reduced Chip Size Slotting up to 1DC

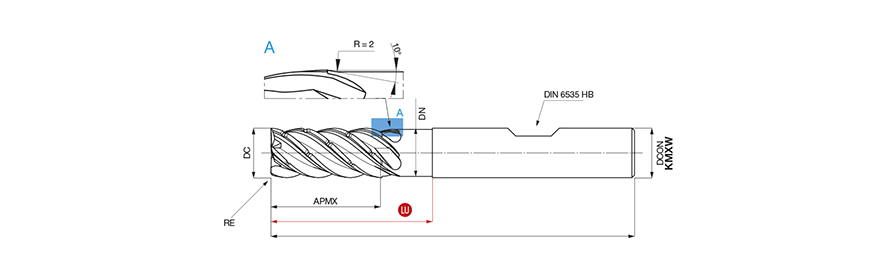

| Cutting Diameter (DC) | 8 mm | Corner Radius (RE) | 0.3 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Neck Diameter (DN) | 7.8 mm |
| Depth of Cut Maximum (APMX) | 18 mm | Peripheral Effective Cutting Edge Count (ZEFP) | 5 |
| Overall Length (OAL) | 68 mm | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
| Usable Length (LU) | 32 mm | Unit | M |
| Application | | Helical Interpolation | Pocketing | Rampdown | Shouldering | Slotting | |
Product Features
| Family Description | Interrupted Cut Reduced Chip Size Slotting up to 1DC | FamilyName | 79710CS5 |
| COO | Italy | BrandName | UOP |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.104
Name
Square & Corner Radius End Mills
FamilyName
79710CS5
BrandName
UOP
