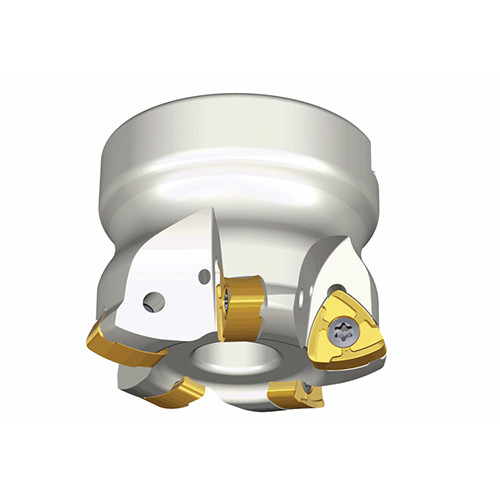

TFMBL 680-27R-13
High feed face mills with BLMP 13 inserts of 6 cutting edges in max. ap 2.0 mm

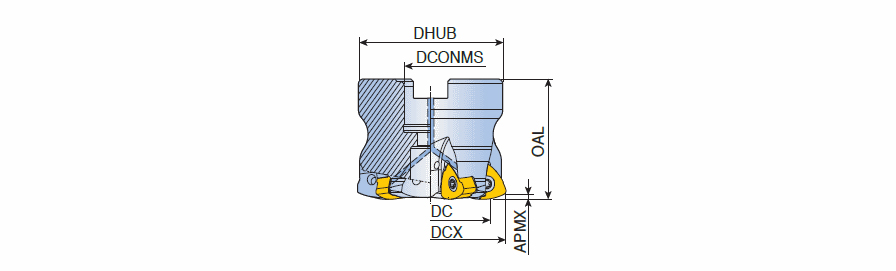

| Cutting Diameter (DC) | 80 mm | Master Insert Identification (MIID) | BLMP 1306R-M |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 2 mm | Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Overall Length (OAL) | 60 mm | Unit | M |
Product Features
| Family Description | High feed face mills with BLMP 13 inserts of 6 cutting edges in max. ap 2.0 mm | FamilyName | TFMBL-R-13 |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
1.8900
Name
Indexable Face Mills
FamilyName
TFMBL-R-13
BrandName
Taegutec
