| Cutting Diameter (DC/DCX) | 30 mm | Connection Diameter Machine Side (DCONMS) | 32 mm |
| Cutting Diameter (DC) | 30 mm | Master Insert Identification (MIID) | PLNG 090408R-M |
| Cutting Item Count (CICT) | 3 | Head Length (LH) | 150 mm |
| Depth of Cut Maximum (APMX) | 2.8 mm | Measurement Type | Metric |
| Overall Length (OAL) | 250 mm | Body Material | Steel |
| Shank Type | Round | Unit | M |
| Application | | Counter Boring | Side Plunging | |
Product Features

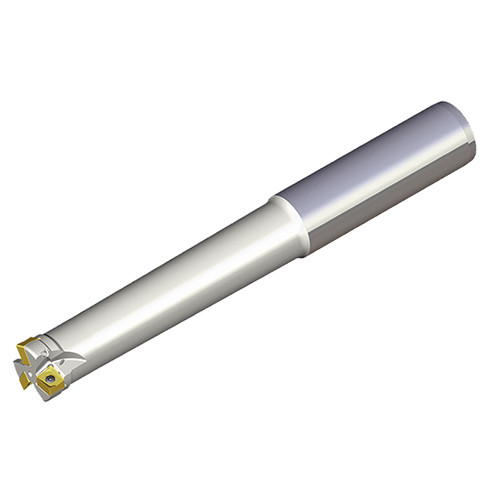

| Family Description | Plunging mills with four helical cutting edges of PLNG 09 inserts & straight shanks for rough plunging & facing | FamilyName | TPM-PL09 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
1.3450
Name
Indexable End Mills
FamilyName
TPM-PL09
BrandName
Taegutec
