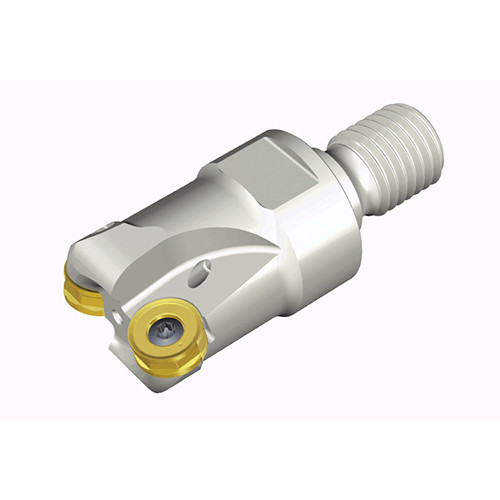

TERNS 325-M12-10
Modular end mills with T-FLEXTEC adaptation and double-sided round inserts of RUMU for general profiling and Die & Mold industry

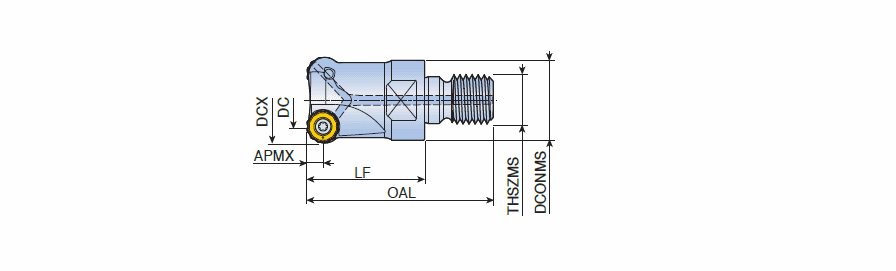

| Cutting Diameter (DC/DCX) | 25 mm | Master Insert Identification (MIID) | RNMU 1004-ML |
| Cutting Diameter (DC) | 25 mm | Head Length (LH) | 35 mm |
| Cutting Item Count (CICT) | 3 | Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Depth of Cut Maximum (APMX) | 5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 57 mm | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Unit | M |
Product Features
| Family Description | Modular end mills with T-FLEXTEC adaptation and double-sided round inserts of RUMU for general profiling and Die & Mold industry | FamilyName | TERNS-M-10/12/16 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.1700
Name
Indexable End Mills
FamilyName
TERNS-M-10/12/16
BrandName
Taegutec
