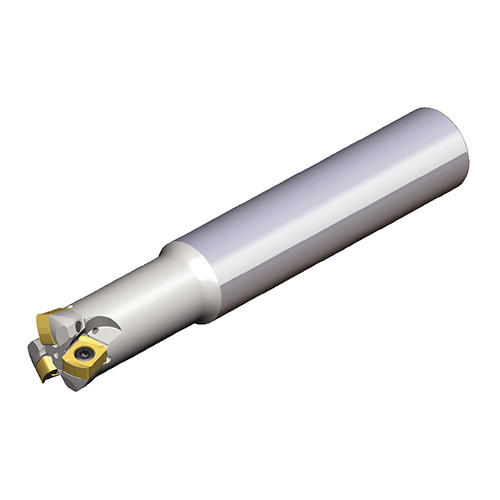

TEBL 312-12-04-L110
High feed end mills with BLMP 04 inserts of 4 cutting edges in maximum depth of cut ap 0.5 mm

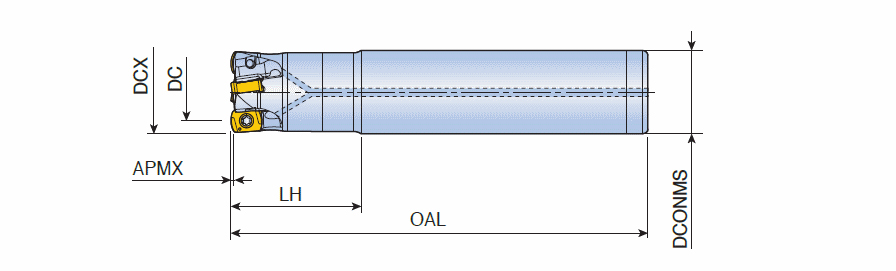

| Cutting Diameter (DC/DCX) | 12 mm | Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Diameter (DC) | 7.6 mm | Master Insert Identification (MIID) | BLMP 0402R-M |
| Cutting Item Count (CICT) | 3 | Head Length (LH) | 20 mm |
| Depth of Cut Maximum (APMX) | 0.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 110 mm | Body Material | Steel |
| Shank Type | Round | Cutting Diameter Maximum (DCX) | 12 mm |
| Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | | Unit | M |
Product Features
| Family Description | High feed end mills with BLMP 04 inserts of 4 cutting edges in maximum depth of cut ap 0.5 mm | FamilyName | TEBL-04 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.1150
Name
Indexable End Mills
FamilyName
TEBL-04
BrandName
Taegutec
