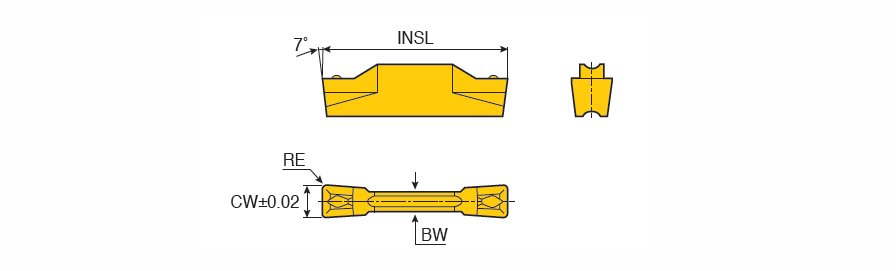

| Cutting Width (CW) | 3 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Inserts | Int. Groove & Turn | Int. Grooving | Parting | |
| Corner Radius (RE) | 0.2 mm | Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Thread Pitch Maximum (TPX) | 4.7 mm | Insert Seat Size Code (SSC) | 3 |
| Insert Length (INSL) | 20 mm | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | K10 | Unit | M |
| Cutting Edge Material | Carbide |
Product Features

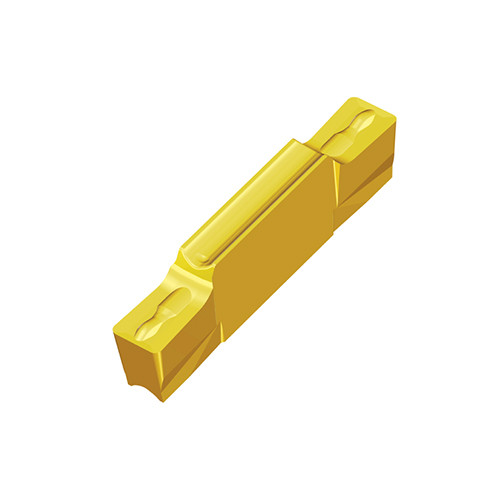

| Family Description | Precision double-ended inserts for external grooving | FamilyName | TDT-E (Precision inserts) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0044
Name
Groove/Turn Indexable Inserts
FamilyName
TDT-E (Precision inserts)
BrandName
Taegutec
