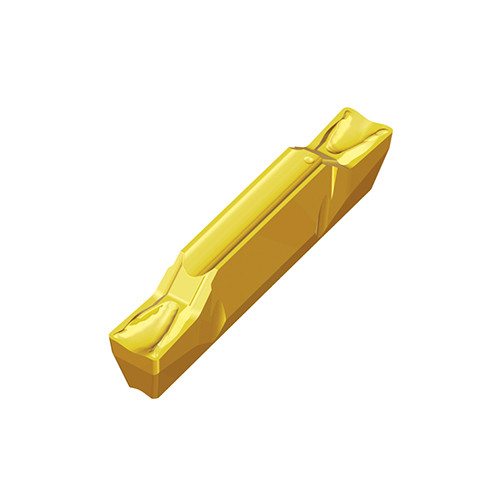

TDXU 2E-0.3 TT9080
Double-ended pressed type multi functional 1st choice inserts for general use in external, internal & face groove-turn machining

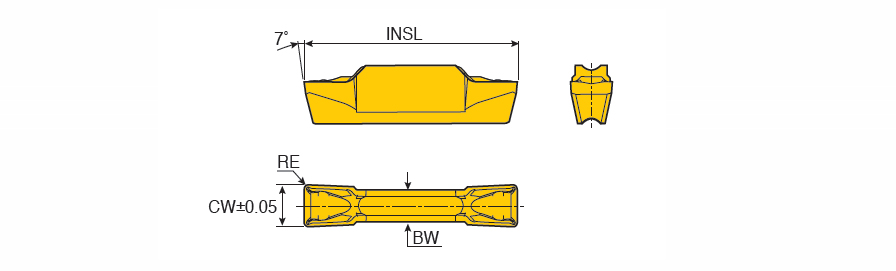

| Cutting Width (CW) | 2 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Inserts | Int. Face Grooving | Int. Face Grooving & Turning | Int. Groove & Turn | Int. Grooving | Parting | |
| Corner Radius (RE) | 0.3 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Thread Pitch Maximum (TPX) | 4.7 mm | Insert Seat Size Code (SSC) | 2 |
| Insert Length (INSL) | 20 mm | Measurement Type | Metric |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | TT9080 | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Double-ended pressed type multi functional 1st choice inserts for general use in external, internal & face groove-turn machining | FamilyName | TDXU-E |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0035
Name
Groove/Turn Indexable Inserts
FamilyName
TDXU-E
BrandName
Taegutec
