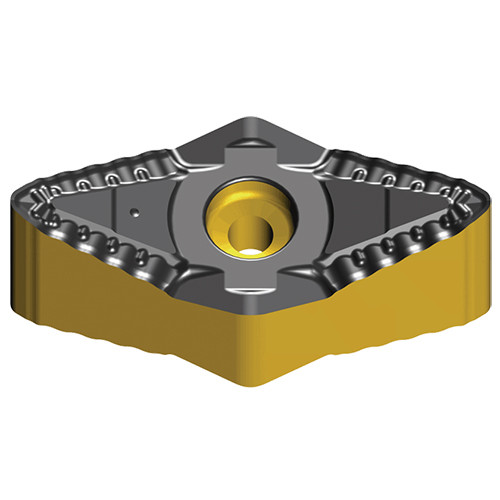

ZNMV 141008-BM TT8115B

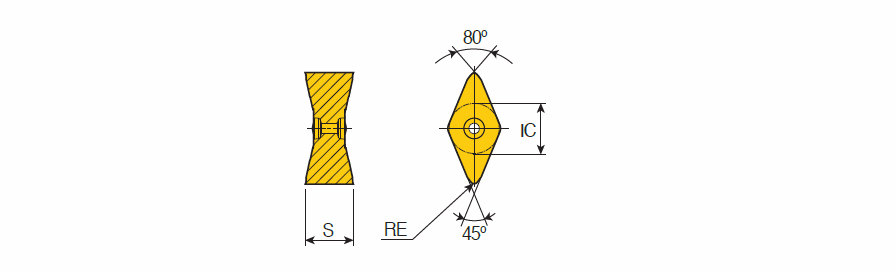

Double-sided positive 4 corner inserts with 80° corner angle for general purpose of all directional & high feed steel turning
| Applicable Material | | Steel | | Grade | TT8115B |
| Application | | Ext23(BWT)&95(FWT) 45°Diamond | High Feed & All directional Turning | Inserts | | Min D.O.C. | 0.5 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 2.5 mm |
| Cutting Edge Length (L) | 14.84 mm | Min. Turning Feed (ft(min)) | 0.4 mm/rev |
| Insert Thickness (S) | 10 mm | Max. Turning Feed (ft(max)) | 1 mm/rev |
| Inscribed Circle Diameter (IC) | 10.5 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
Product Features
| Family Description | Double-sided positive 4 corner inserts with 80° corner angle for general purpose of all directional & high feed steel turning | FamilyName | ZNMV 141008-BM |

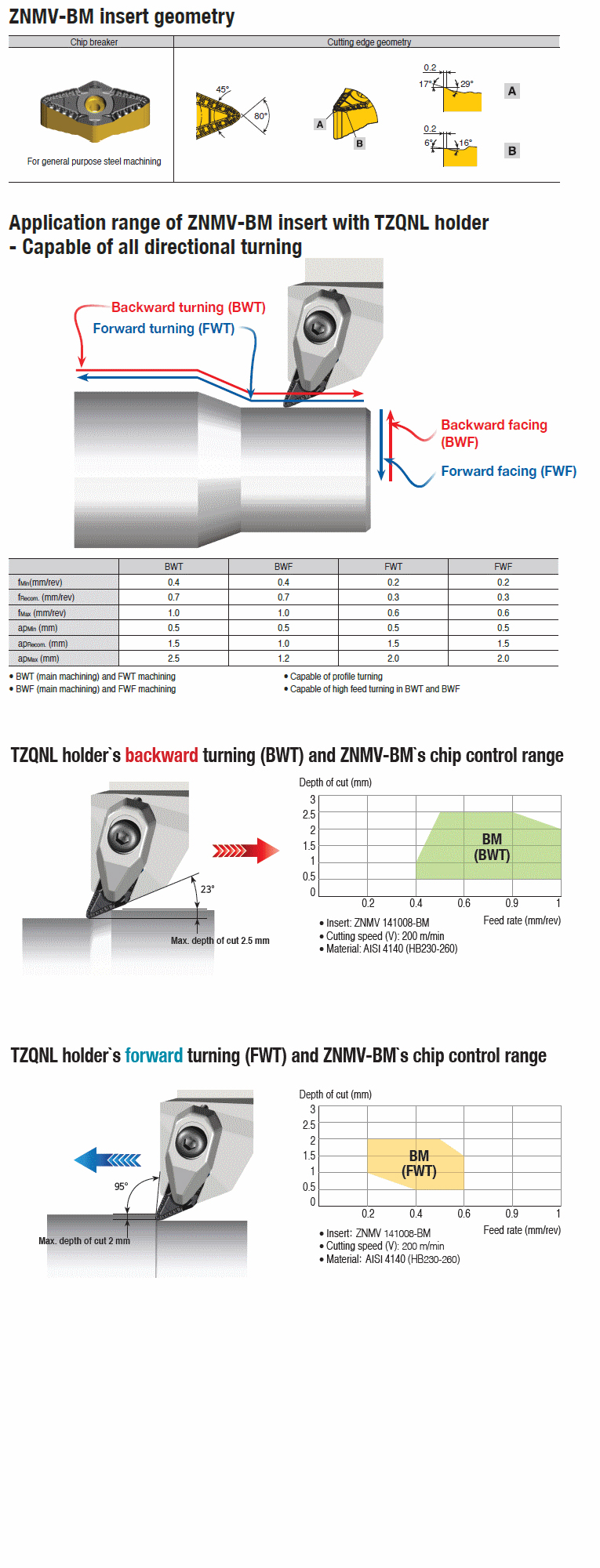

| Remarks | ap & ft is backward turning conditions Forward turning conditions: ap(min)=0.5, ap(max)=2.0, ft(min)=0.20, ft(max)=0.60 *Products are made by license; Prime Turning is a proprietary technology of AB Sandvik Coromant | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0175
Name
Turning Indexable Inserts
FamilyName
ZNMV 141008-BM
BrandName
Taegutec
