LCD-380-F TT9080

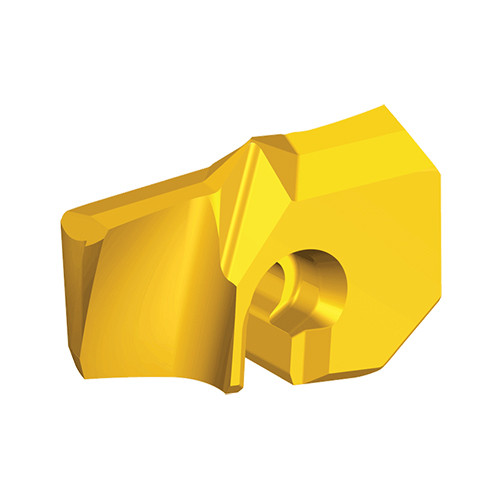

SPADERUSH Head changeable drilling inserts of large diameter with flat bottom

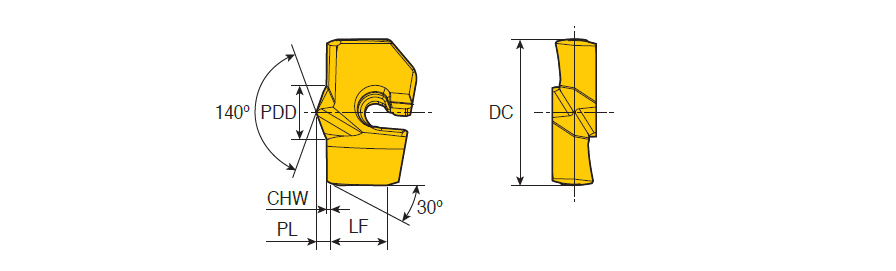

| Cutting Diameter (DC) | 38 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Point Length (PL) | 3.49 mm |
| Application | | Drilling | Hole Making Inserts | | Coating | TiAlN+TiN |
| Grade | TT9080 | Pilot Drill Diameter (PDD) | 15.9 mm |
| Insert Seat Size Code (SSC) | 38 | Corner Chamfer Width (CHW) | 0.7 mm |
| Functional Length (LF) | 13.32 mm | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
Product Features
| Family Description | SPADERUSH Head changeable drilling inserts of large diameter with flat bottom | COO | S.KOREA |
Shipping Info
Weight per item
0.0815
