TPH452B10 M3X0.5

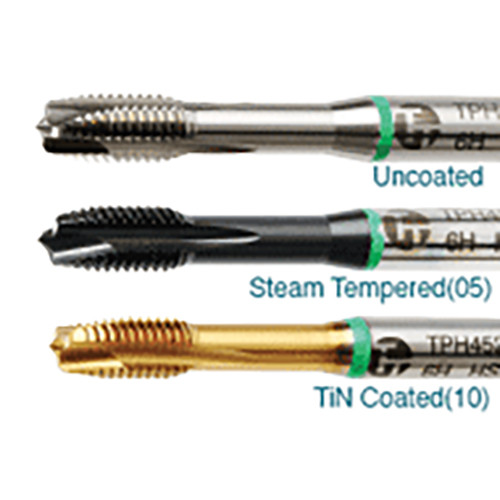

HSSE Gun point,machine taps for ISO metric threads, according to DIN 13,form B:4-5 threads chamfer.

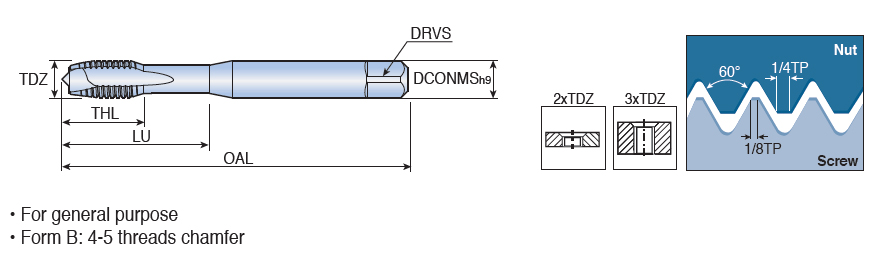

| Thread Diameter Size (TDZ) | M3 mm | Tapping Prehole Diameter (Pre-hole) | 2.5 mm |
| Thread Pitch (TP) | 10 mm | Square Size | 2.7 mm |
| Overall Length (OAL) | 56 mm | Measurement Type | Metric |
| Usable Length (LU) | 18 mm | Body Material | HSS |
| Connection Diameter Machine Side (DCONMS) | 3.5 mm | Unit | M |
| Application | | Taps for deep through hole | Taps for short through hole | |
Product Features
| Family Description | HSSE Gun point,machine taps for ISO metric threads, according to DIN 13,form B:4-5 threads chamfer. | COO | HUNGARY |
Shipping Info
Weight per item
0.0200
