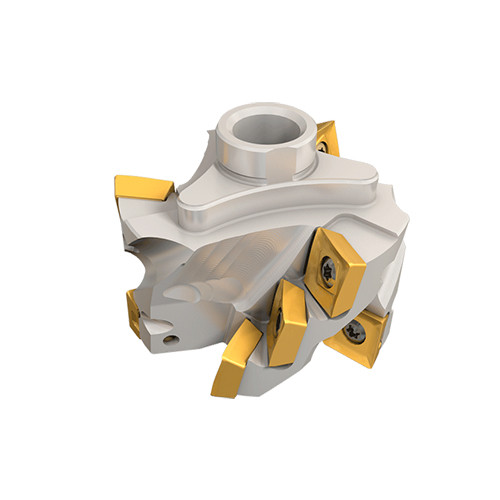

SM D63-33-FT/F-I
End units for modular extended flute cutters. Use S/Q/XPMT 10... inserts for 50 mm cutter diameter and S/QDMT 1205... inserts for larger diameters.
| Application | | Shouldering | Slotting | | Master Insert Identification (MIID) | SDMT 1205 |
| Cutting Item Count (CICT) | 12 | Cutting Direction (HAND) | Right Hand |

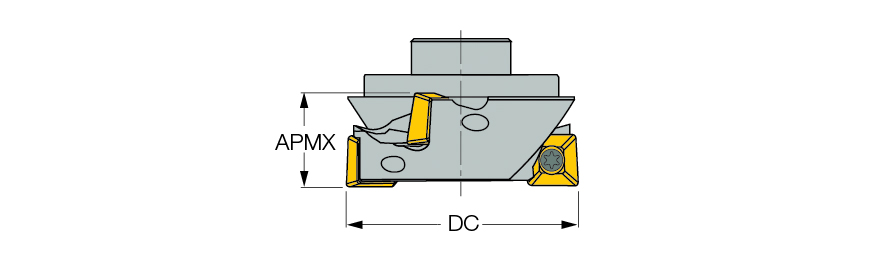

| Depth of Cut Maximum (APMX) | 33 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 63 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Tool Type | 90° Extended flute shell mill |
| Flute Count (NOF) | 3 | Unit | M |
Product Features
| Family Description | End units for modular extended flute cutters. Use S/Q/XPMT 10... inserts for 50 mm cutter diameter and S/QDMT 1205... inserts for larger diameters. | FamilyName | SM-FT |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.5290
Name
Shell Mills
FamilyName
SM-FT
BrandName
Iscar
