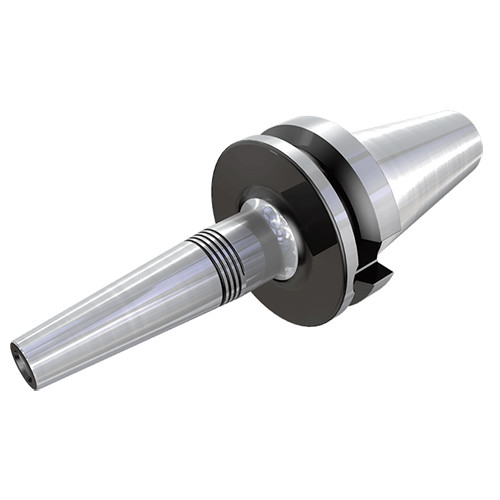

BT40 SRK 4X85
Thermal shrink chucks with BT MAS 403 form AD taper shanks, for carbide tools.

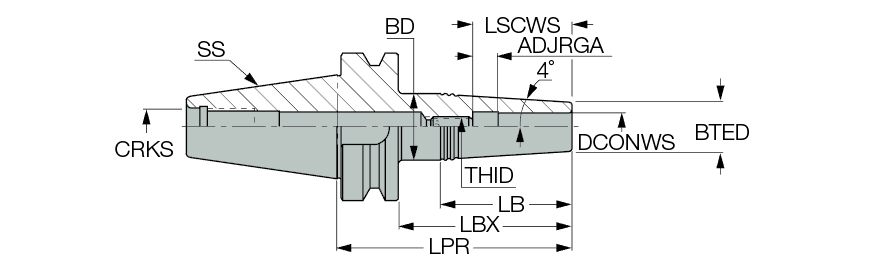

| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 4 mm | Tool Type | BT |
| Shank Size (SS) | 40 | Body Material | Steel |
| Body Length (LB) | 64.15 mm | Connection Code Machine Side (CCMS) | BT |
| Protruding Length (LPR) | 112 mm | Unit | M |
| Overall Length (OAL) | 177.4 mm |
Product Features
| Family Description | Thermal shrink chucks with BT MAS 403 form AD taper shanks, for carbide tools. | FamilyName | BT-SRK |
| Remarks | For shrink units information, Click on More Info. Preset screw without coolant hole For through tool coolant, preset screw must be removed | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.1480
Name
Shrink Fit Holders
FamilyName
BT-SRK
BrandName
Iscar
