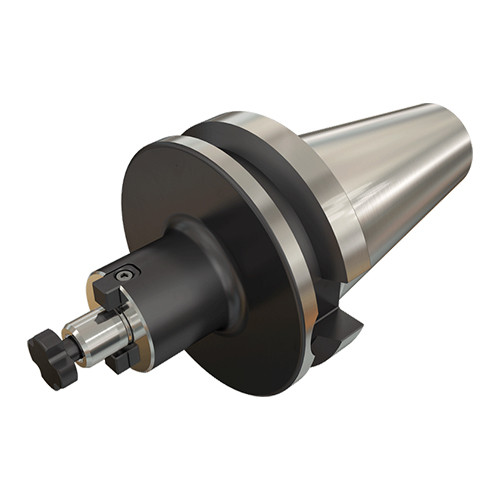

BT30 SEM 22X50
ISO 3937 shell mill holders with BT MAS-403 ADB tapered shanks.

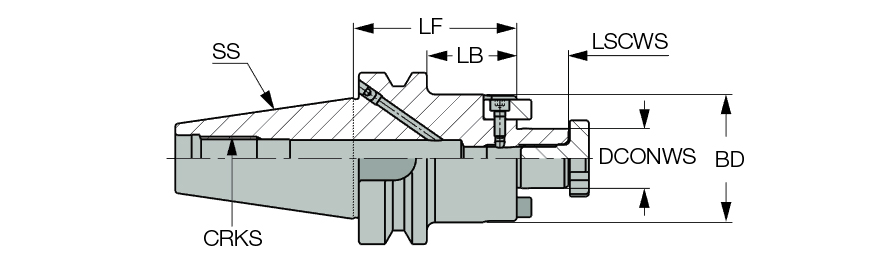

| Connection Diameter Machine Side (DCONMS) | 30 mm | Tool Type | BT |
| Connection Diameter Workpiece Side (DCONWS) | 22 mm | Measurement Type | Metric |
| Shank Size (SS) | 30 | Body Material | Steel |
| Functional Length (LF) | 50 mm | Connection Code Machine Side (CCMS) | BT |
| Body Diameter (BD) | 47 mm | Unit | M |
| Clamping Length Workpiece Side (LSCWS) | 19 mm |
Product Features
| Family Description | ISO 3937 shell mill holders with BT MAS-403 ADB tapered shanks. | FamilyName | BT-SEM |
| Remarks | For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (applicable to certain tools only) | BrandName | Iscar |
| COO | Turkey |
Shipping Info
Weight per item
0.9030
Name
Shell Mill Holders
FamilyName
BT-SEM
BrandName
Iscar
