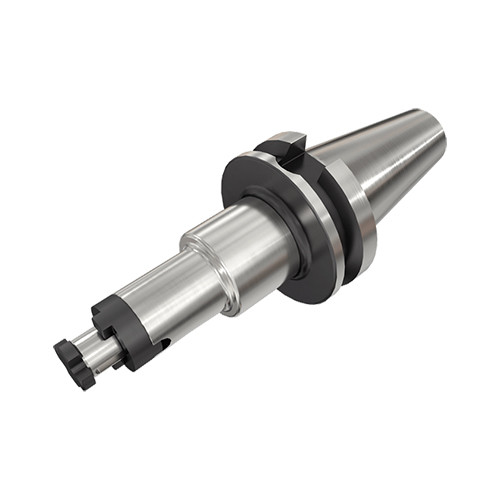

BT40 SEMC 27X100
COMBI shell mill holders with BT MAS-403 AD tapered shanks .

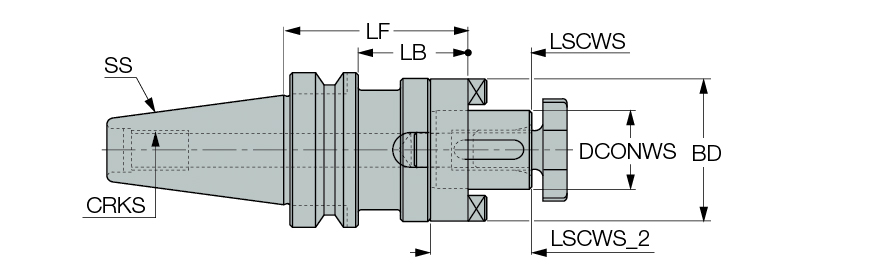

| Connection Diameter Machine Side (DCONMS) | 40 mm | Tool Type | BT |
| Connection Diameter Workpiece Side (DCONWS) | 27 mm | Measurement Type | Metric |
| Shank Size (SS) | 40 | Body Material | Steel |
| Functional Length (LF) | 98 mm | Connection Code Machine Side (CCMS) | BT |
| Body Diameter (BD) | 48 mm | Unit | M |
| Clamping Length Workpiece Side (LSCWS) | 21 mm |
Product Features
| Family Description | COMBI shell mill holders with BT MAS-403 AD tapered shanks . | FamilyName | BT-SEMC |
| Remarks | For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (applicable to certain tools only) | BrandName | Iscar |
| COO | Turkey |
Shipping Info
Weight per item
2.1490
Name
Shell Mill Holders
FamilyName
BT-SEMC
BrandName
Iscar
