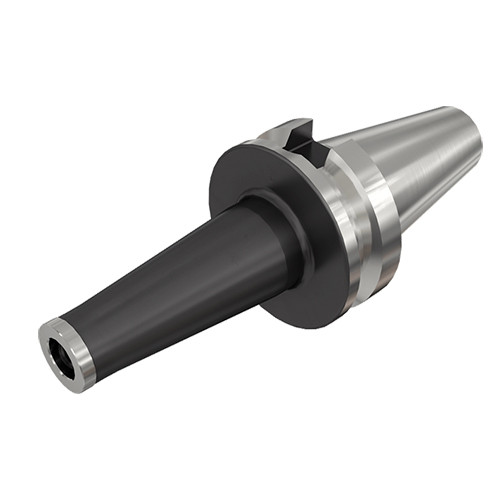

BT40 ODP16X 66
FLEX-FIT threaded adaptation with integral BT MAS-403 tapered shanks (ADB type).

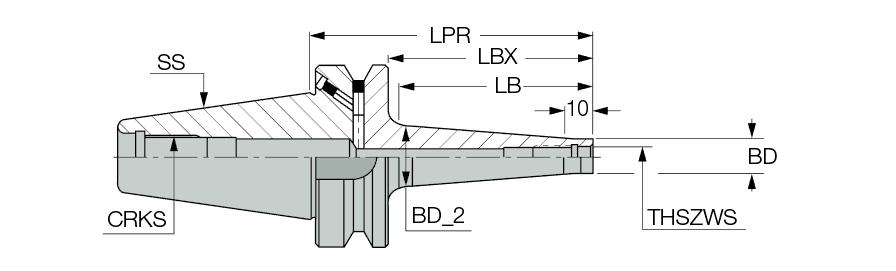

| Shank Size (SS) | 40 | Connection Retention Knob Thread Size (CRKS) | M16 |
| Protruding Length (LPR) | 66 mm | Tool Type | BT |
| Body Length (LB) | 35 mm | Measurement Type | Metric |
| Body Diameter (BD) | 28.6 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Connection Code Machine Side (CCMS) | BT |
| Connection Thread Nominal Size Workpiece Side (THSZWS) | M16 | Unit | M |
Product Features
| Family Description | FLEX-FIT threaded adaptation with integral BT MAS-403 tapered shanks (ADB type). | FamilyName | BT-ODP (FLEX-FIT) |
| Remarks | For adaptation Click on More Info. The coolant passages in the B type flange are blocked with screws which can be removed when required. | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
1.1350
Name
Drill Chucks & Adapters
FamilyName
BT-ODP (FLEX-FIT)
BrandName
Iscar
