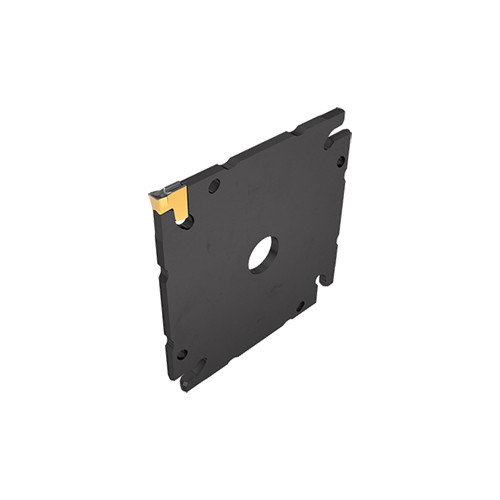

TGAQ D82-3-4Z-ECD
Parting and Grooving Square Adapters Compatible with TANG-GRIP Inserts (single-ended),fit the unique 'crown' clamping mechanism . Provide high coolant pressure up to 340 bar.

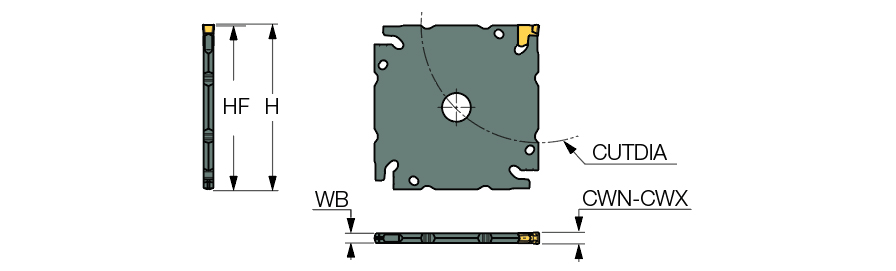

| Shank Height (H) | 58 mm | Body Material | Steel |
| Body Width (WB) | 2.5 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 82 mm |
| Cutting Width Minimum (CWN) | 2.8 mm | Cutting Direction (HAND) | Neutral |
| Cutting Width Maximum (CWX) | 3.5 mm | Measurement Type | Metric |
| Functional Length (LF) | 58 mm | Tool Assembly Length (LTA) | 57.7 mm |
| Application | | Ext. Grooving | Parting | | Unit | M |
Product Features
| Family Description | Parting and Grooving Square Adapters Compatible with TANG-GRIP Inserts (single-ended),fit the unique 'crown' clamping mechanism . Provide high coolant pressure up to 340 bar. | FamilyName | TGAQ-ECD (JET-CROWN) |
| Remarks | Suitable for all TANG-GRIP inserts | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0910
Name
Parting Off Indexable Holders
FamilyName
TGAQ-ECD (JET-CROWN)
BrandName
Iscar
