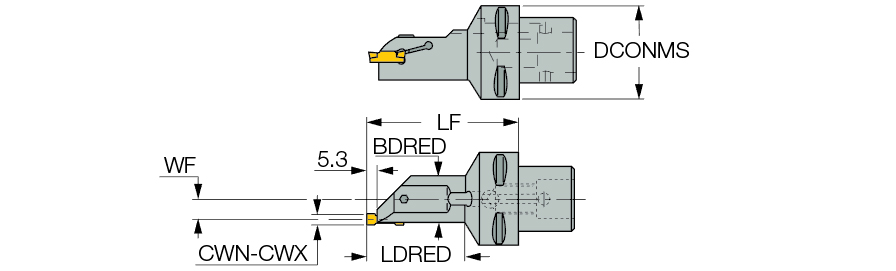

| Cutting Depth Maximum (CDX) | 5.3 mm | Application | | Face Grooving | Face Grooving & Turning | Int. Face Grooving | Int. Face Recessing | |
| Cutting Width (CW) | 4 mm | Tool Type | Indexable Turn & Groov Tools |
| Cutting Width Maximum (CWX) | 6 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 3 mm | Functional Width (WF) | 11.3 mm |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Overall Length (OAL) | 104 mm | Unit | M |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
Product Features

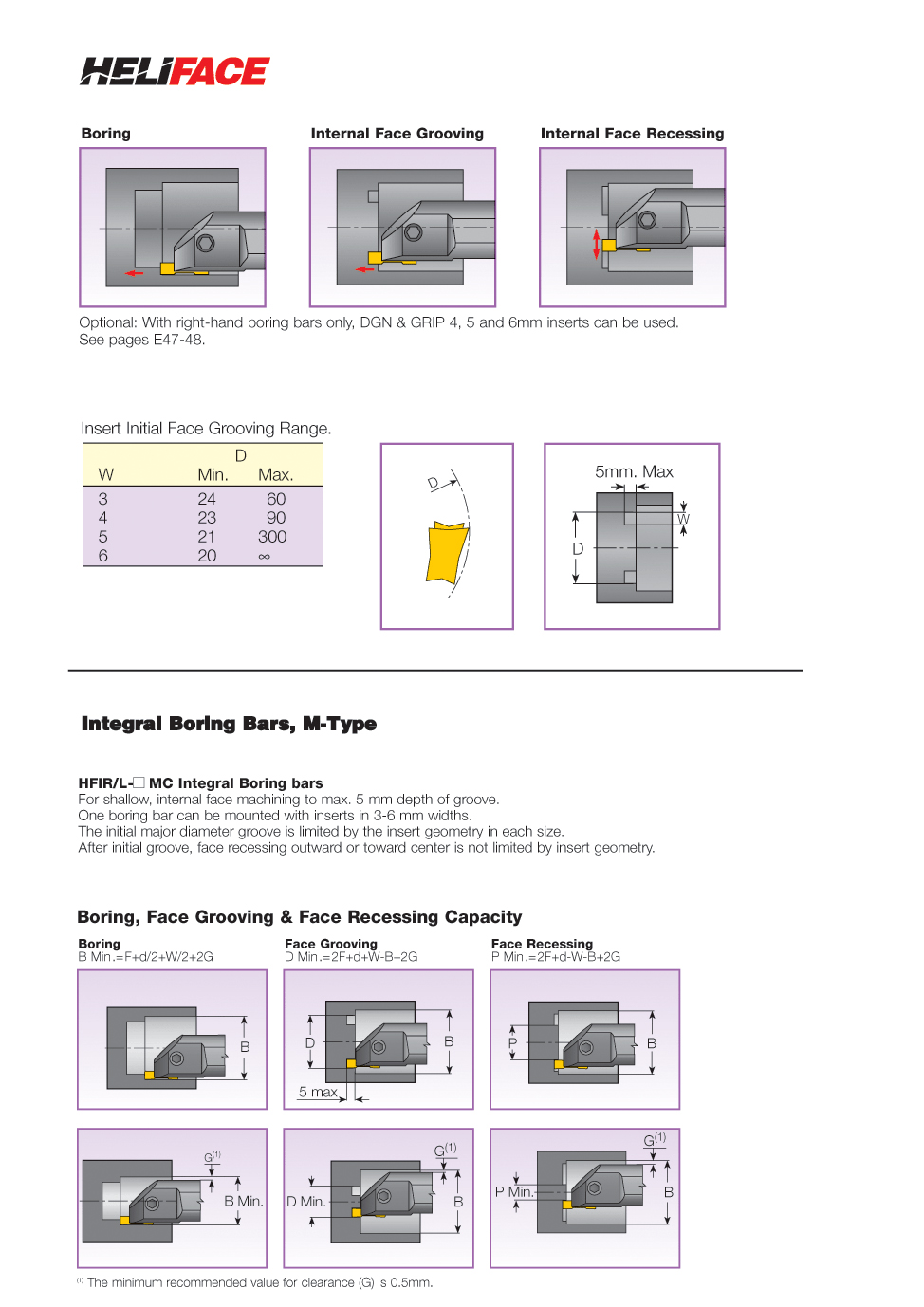

| Family Description | Boring bars for internal grooving and turning with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks. Dmin. 20 mm. | FamilyName | C#-HFIR/L-MC |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.4910
Name

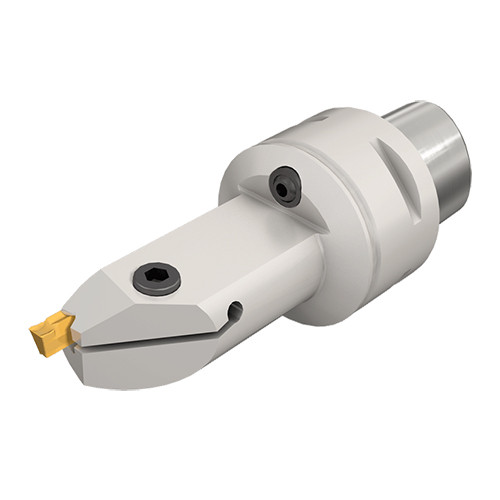

Face Groove/Turn Indexable Holders
FamilyName
C#-HFIR/L-MC
BrandName
Iscar
