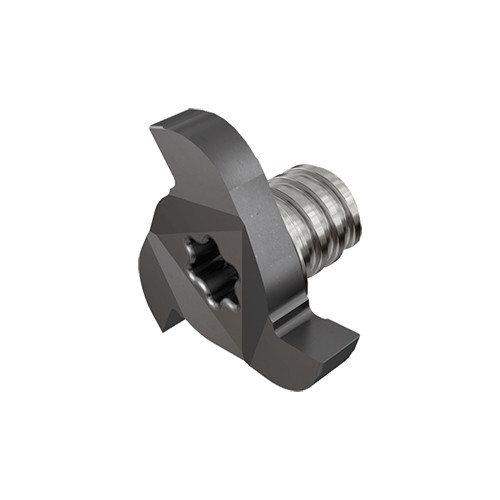

MM GRIT16K157-020-3T6 IC908
MULTI-MASTER interchangeable solid carbide small diameter, groove milling heads. "K" for general steel machining, "P" Positive geometry for soft and gummy materials.

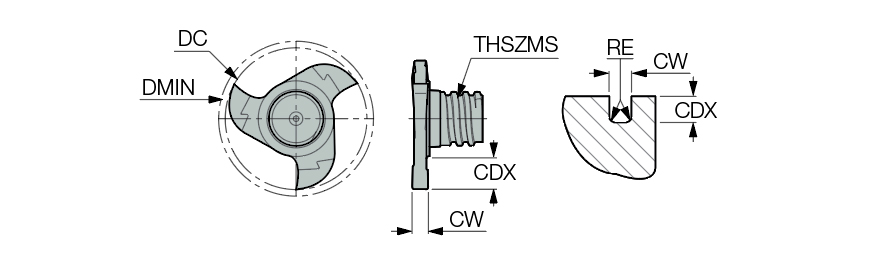

| Application | | Internal Groove Milling | Side Slotting | T Slotting | | Cutting Width (CW) | 1.57 mm |
| Cutting Diameter (DC) | 15.7 mm | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Corner Radius (RE) | 0.2 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Body Material | Carbide |
| Cutting Depth Maximum (CDX) | 2.8 mm | Unit | M |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide small diameter, groove milling heads. "K" for general steel machining, "P" Positive geometry for soft and gummy materials. | FamilyName | MM GRIT-3T6 |
| Remarks | For clamping instructions, click on More Info. Modification options on request. Recommended for O-rings and retaining rings. Do not apply lubricant to the threaded connection. K-Type - For general steel machining. P-Type - Positive geometry for soft and gummy materials. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0150
Name
Solid End Mill Heads
FamilyName
MM GRIT-3T6
BrandName
Iscar
