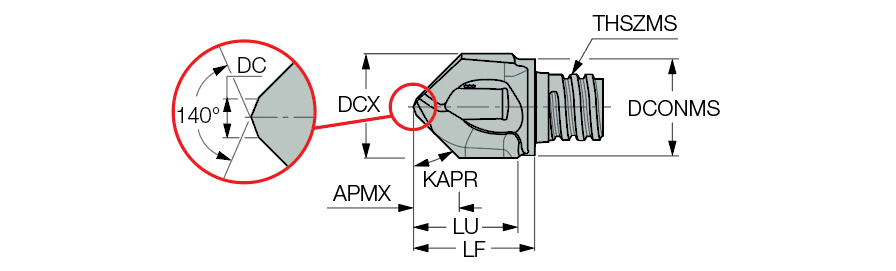

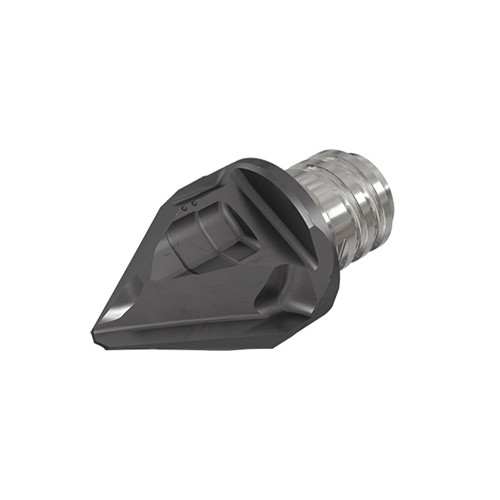

MM HCD124-090-2T08 IC908
| Application | | Chamfering | Countersinking | Drill Mill | Drilling | Slanted Shoulder & Chamfer | | Grade | IC908 |
| Cutting Diameter (DC) | 1.5 mm | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Profile Angle (PRFA) | 140 Degrees |
| Flute Count (NOF) | 2 | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 12.4 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 5.5 mm | Tool Type | Solid chamfering endmills |
| Connection Diameter Machine Side (DCONMS) | 11.5 mm | Body Material | Carbide |
| Functional Length (LF) | 15.5 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 23.45 mm | Unit | M |
Product Features
| Family Description | Interchangeable 2 flute solid carbide heads for chamfering, countersinking and spot drilling | FamilyName | MM HCD |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0240
Name
Solid End Mill Heads
FamilyName
MM HCD
BrandName
Iscar
