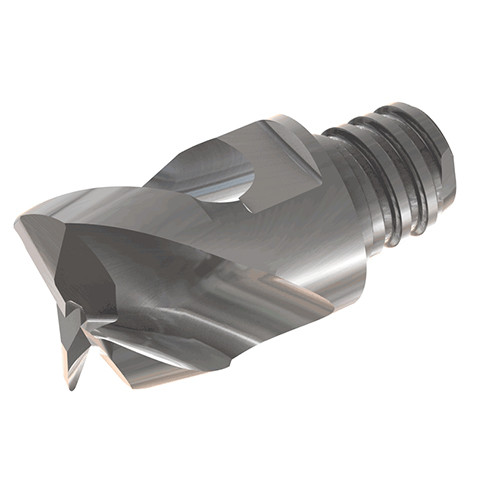

MM EA200B12R3.0-3T12 IC08
MULTI-MASTER, Interchangeable solid carbide slot drill milling heads with two or three 45° helix flutes. Used for machining aluminum
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Grade | IC08 |

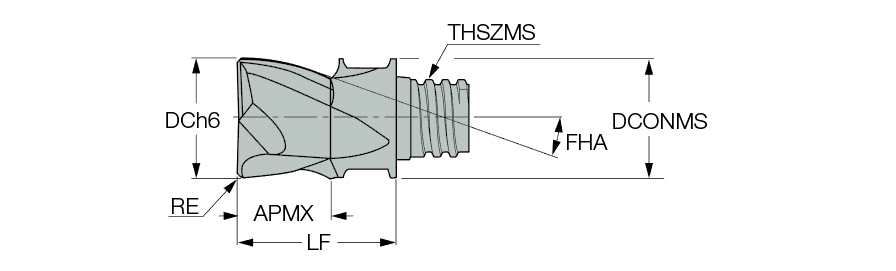

| Cutting Diameter (DC) | 20 mm | Coating | Uncoated |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Corner Radius (RE) | 3 mm | Maximum Feed per Tooth (fz(max)) | 0.13 mm/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 20 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 12 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Connection Diameter Machine Side (DCONMS) | 18.45 mm | Body Material | Carbide |
| Functional Length (LF) | 25.5 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Flute Helix Angle (FHA) | 45 Degrees | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Overall Length (OAL) | 39.3 mm | Unit | M |
Product Features
| Family Description | MULTI-MASTER, Interchangeable solid carbide slot drill milling heads with two or three 45° helix flutes. Used for machining aluminum | FamilyName | MM EA |

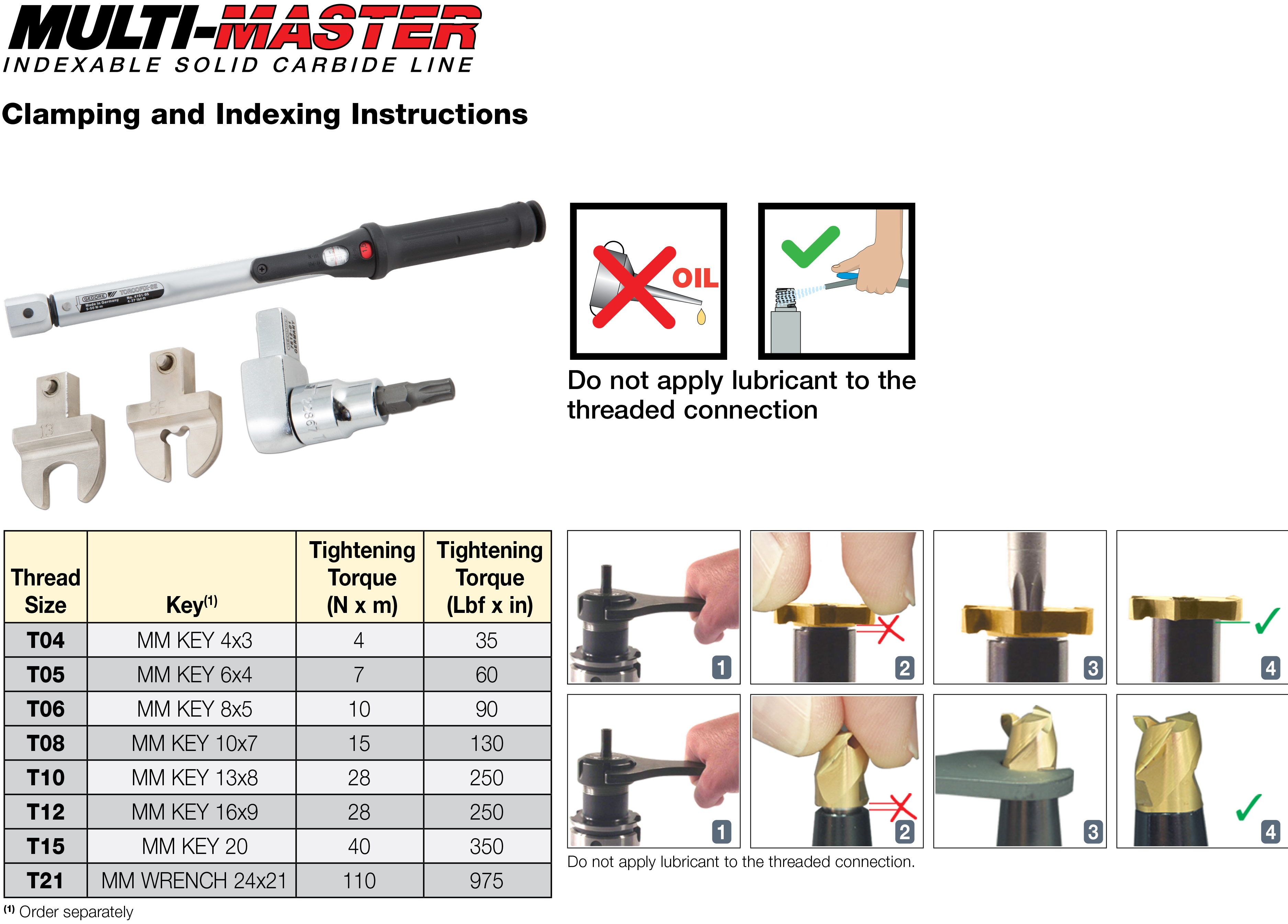

| Remarks | For tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1005
Name
Solid End Mill Heads
FamilyName
MM EA
BrandName
Iscar
