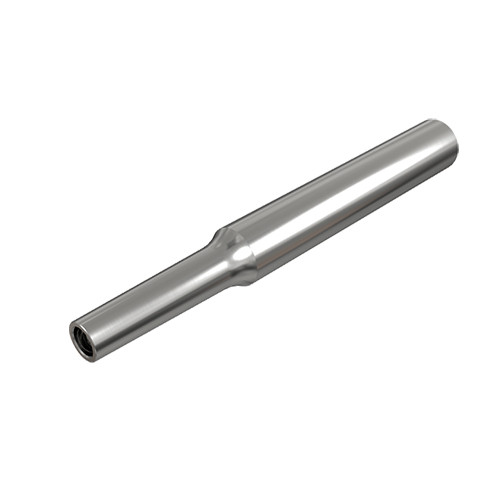

MM S-D-L190-C20-T10-C
MULTI-MASTER, 89° conical shanks for solid carbide interchangeable milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes.

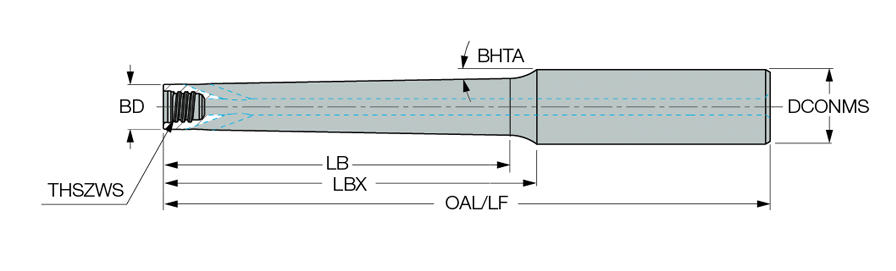

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T10 | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Rotational Speed Maximum (RPMX) | 22830 Rev/min |
| Overall Length (OAL) | 190 mm | Body Material | Carbide |
| Body Length Maximum (LBX) | 140 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Tool Type | Cylindrical Shanks | Unit | M |
| Body Diameter (BD) | 15.3 mm |
Product Features
| Family Description | MULTI-MASTER, 89° conical shanks for solid carbide interchangeable milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes. | FamilyName | MM S-D (89° conical shanks) |
| Remarks | For adaptation click on More Info Do not apply lubricant to the threaded connection. Shank Material (Shank m.): S-steel,C-carbide,W-tungsten. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.7070
Name
Solid End Mill Shanks
FamilyName
MM S-D (89° conical shanks)
BrandName
Iscar
