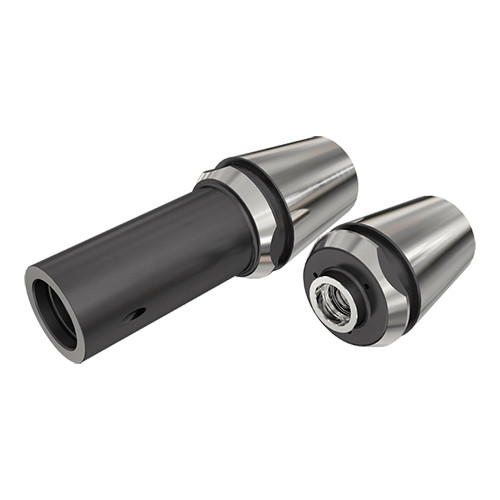

MM S-A-H050-ER32-T10-H
Shanks that mount MULTI-MASTER solid carbide heads with an ER colleta adaptation and coolant holes

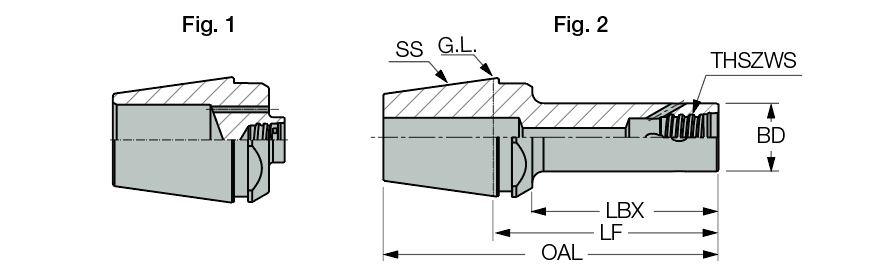

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T10 | Body Diameter (BD) | 15.2 mm |
| Overall Length (OAL) | 90 mm | Functional Length (LF) | 60.1 mm |
| Shank Size (SS) | ER32 | Measurement Type | Metric |
| Body Length Maximum (LBX) | 50 mm | Body Material | Steel |
| Tool Type | Spring Collets | Unit | M |
Product Features
| Family Description | Shanks that mount MULTI-MASTER solid carbide heads with an ER colleta adaptation and coolant holes | FamilyName | MM S-ER-H |
| Remarks | Do not apply lubricant to the threaded connection. For adaptation click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2110
Name
Solid End Mill Shanks
FamilyName
MM S-ER-H
BrandName
Iscar
