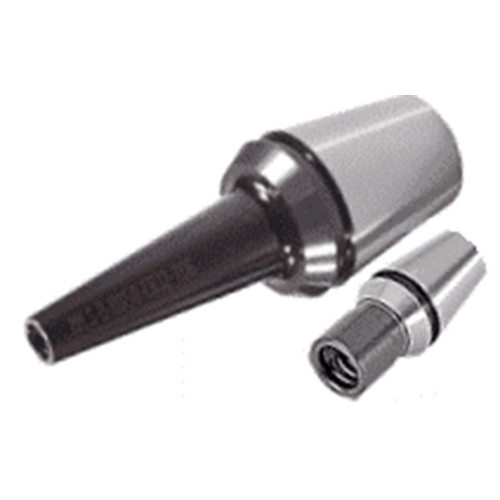

MM S-B-H050-ER32-T06
Shanks that mount MULTI-MASTER solid carbide heads with an ER collet adaptation

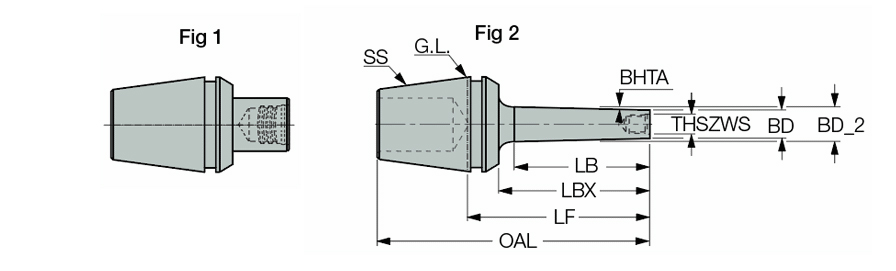

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T06 | Body Length (LB) | 47.3 mm |
| Overall Length (OAL) | 90 mm | Functional Length (LF) | 60.1 mm |
| Shank Size (SS) | ER32 | Measurement Type | Metric |
| Body Length Maximum (LBX) | 50 mm | Body Material | Steel |
| Tool Type | Spring Collets | Unit | M |
| Body Diameter (BD) | 9.6 mm |
Product Features
| Family Description | Shanks that mount MULTI-MASTER solid carbide heads with an ER collet adaptation | FamilyName | MM S-ER |
| Remarks | Do not apply lubricant to the threaded connection. For adaptation click on More Info. When a rigid ER collet is assembled in an ER holder, the actual protruding length of the holder becomes shorter by 2.0 mm for ER20 and by 3.0 mm for ER25/ER32 | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2040
Name
Solid End Mill Shanks
FamilyName
MM S-ER
BrandName
Iscar
