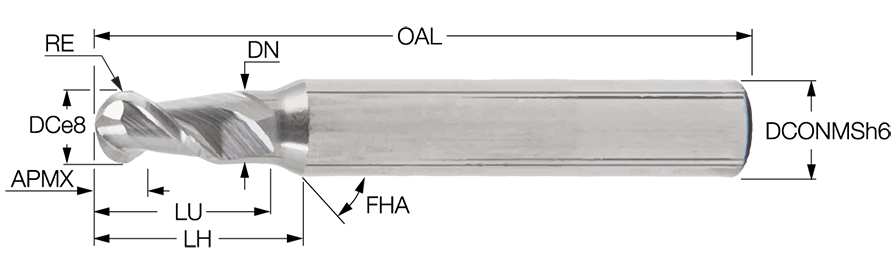

| Cutting Diameter (DC) | 5 mm | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Corner Radius (RE) | 2.49 mm |
| Depth of Cut Maximum (APMX) | 5 mm | Neck Diameter (DN) | 4.7 mm |
| Overall Length (OAL) | 57 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Grade | IC08 |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Metric |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 10 mm | Unit | M |
| Applicable Material | | Aluminum / Non-Ferrous Materials | |
Product Features
| Family Description | 2 flute high precision solid carbide ball nose endmills for machining aluminum. | FamilyName | EBA-B2 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0250
Name
Ballnose End Mills
FamilyName
EBA-B2
BrandName
Iscar
