DCN 085-025-12A-3D

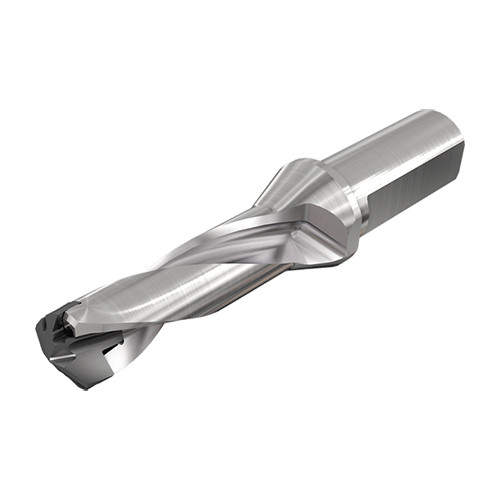

SUMOCHAM 3xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.

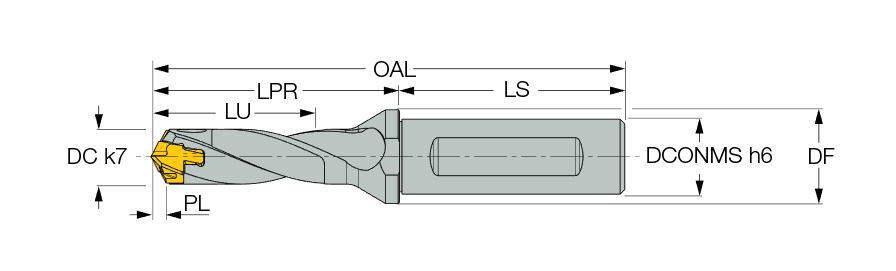

| Cutting Diameter (DC) | 8.5 mm | Overall Length (OAL) | 85.9 mm |
| Usable Length (LU) | 26.79 mm | Shank Length (LS) | 45 mm |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 085 |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Point Length (PL) | 1.29 mm |
| Insert Seat Size Code (SSC) | 8.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 8.5 mm | Flange Diameter (DF) | 16 mm |
| Cutting Diameter Maximum (DCX) | 8.99 mm | Body Diameter Reduced (BDRED) | 16 mm |
| Protruding Length (LPR) | 40.9 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 39.35 mm | Unit | M |
Product Features
| Family Description | SUMOCHAM 3xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.0880
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
