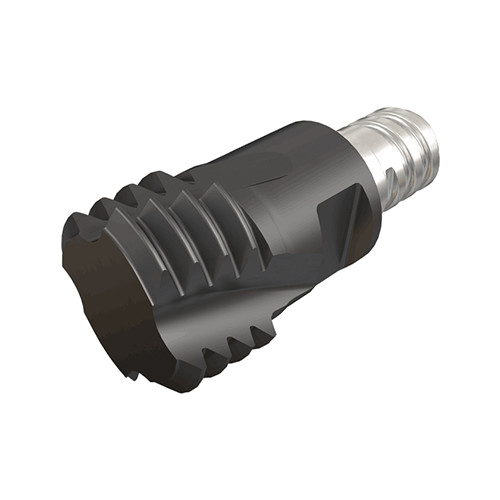

MT 15.3D13 10UN-MMT08 IC908
Carbide milling heads with a threaded (MULTI-MASTER) connection for internal UN thread profile
| Thread Standard | UNC |THFT | | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 10 | Tool Type | Solid carbide thread mills |

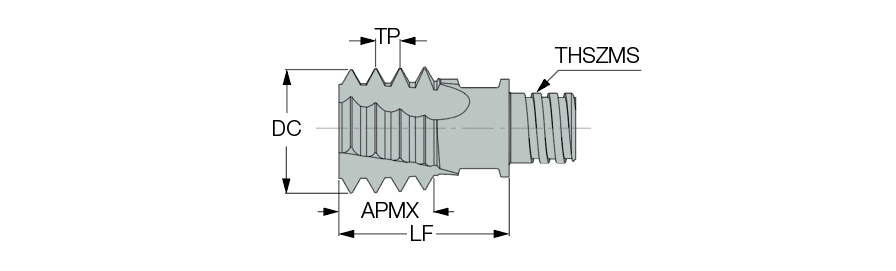

| Thread Diameter Size (TDZ) | 3/4″ | Functional Length (LF) | 20 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Measurement Type | Metric |
| Cutting Diameter (DC) | 15.3 mm | Overall Length (OAL) | 27.95 mm |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Coating | TiAlN | Thread Size | 3/4 - 10 |
| Grade | IC908 | Connection Code Machine Side (CCMS) | MultiMaster |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | UN60 |
| Application | | Internal Thread Milling | | Unit | M |
Product Features
| Family Description | Carbide milling heads with a threaded (MULTI-MASTER) connection for internal UN thread profile | COO | Israel |
| Remarks | Note: Description and dimensions relate to the new products with clamping flats For clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Weight per item
0.0430
